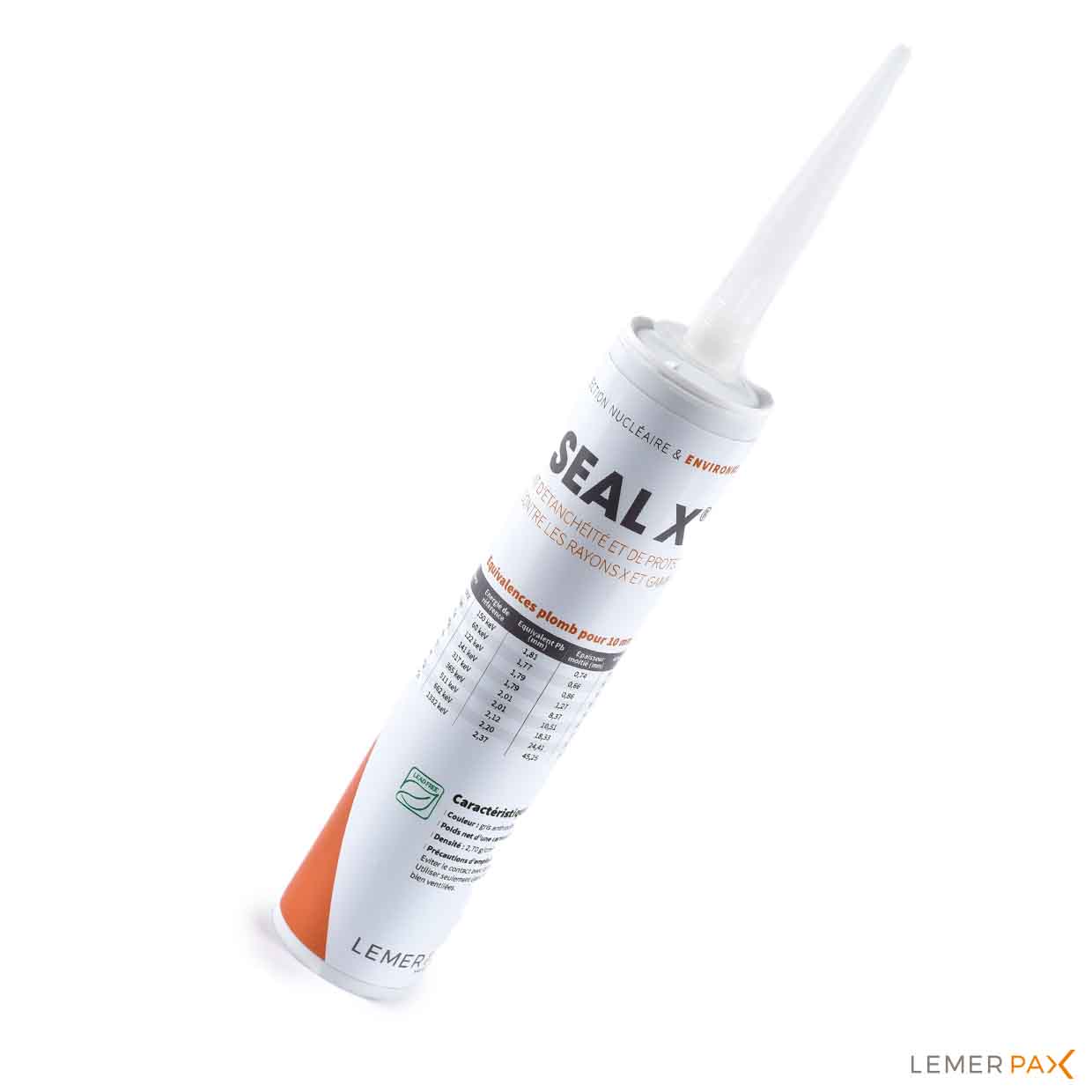

Seal X
Reference :
00003309
Download the product sheet for more references
X-Ray and gamma ray protective sealant
WHY CHOOSE Seal X
- Performance: Effective and uniform protection against X-rays and gamma rays
- Sealing: airtight and dustproof
- Features: quick drying and can be painted
- Ergonomics: easy to use cartridge and safe to handle
DESCRIPTION

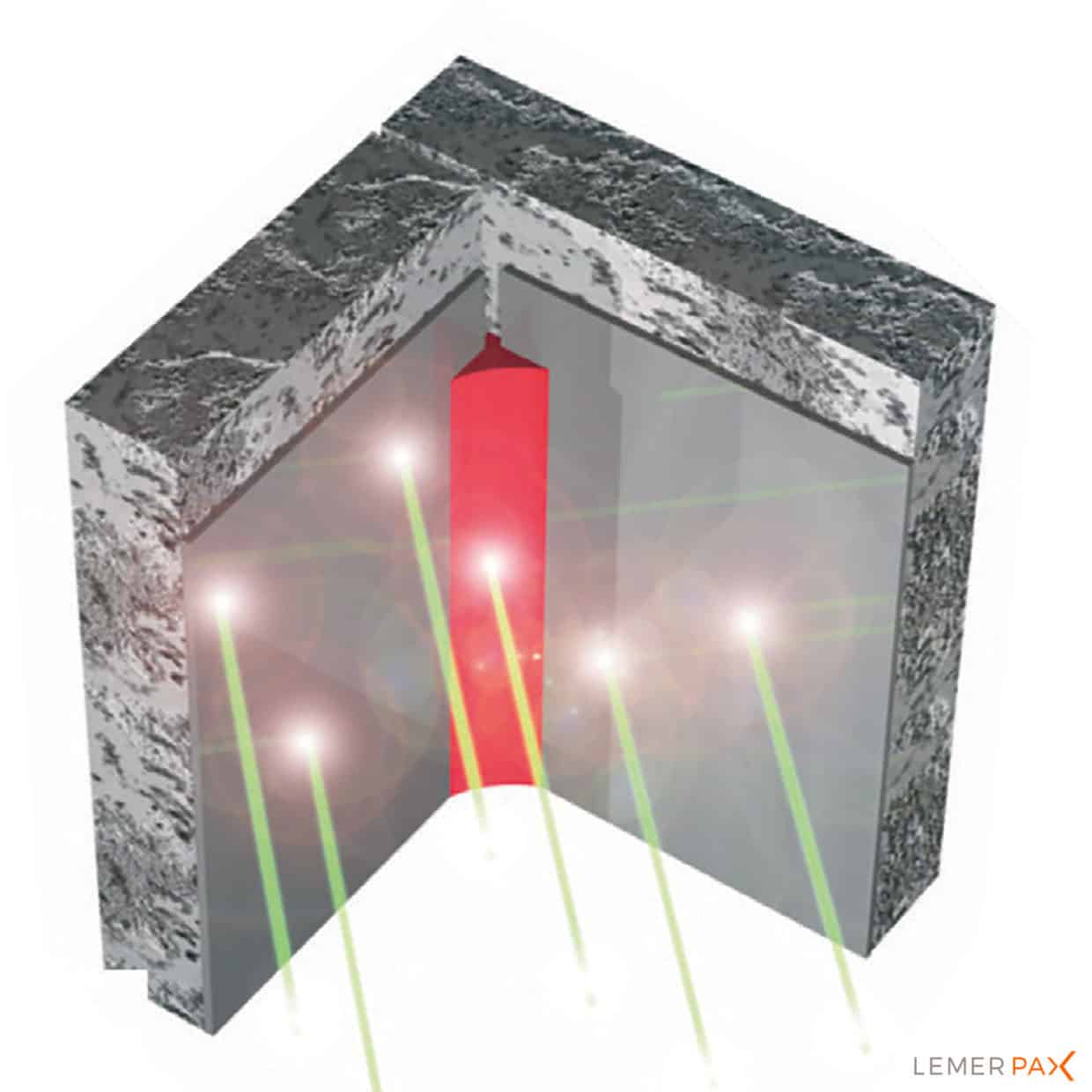

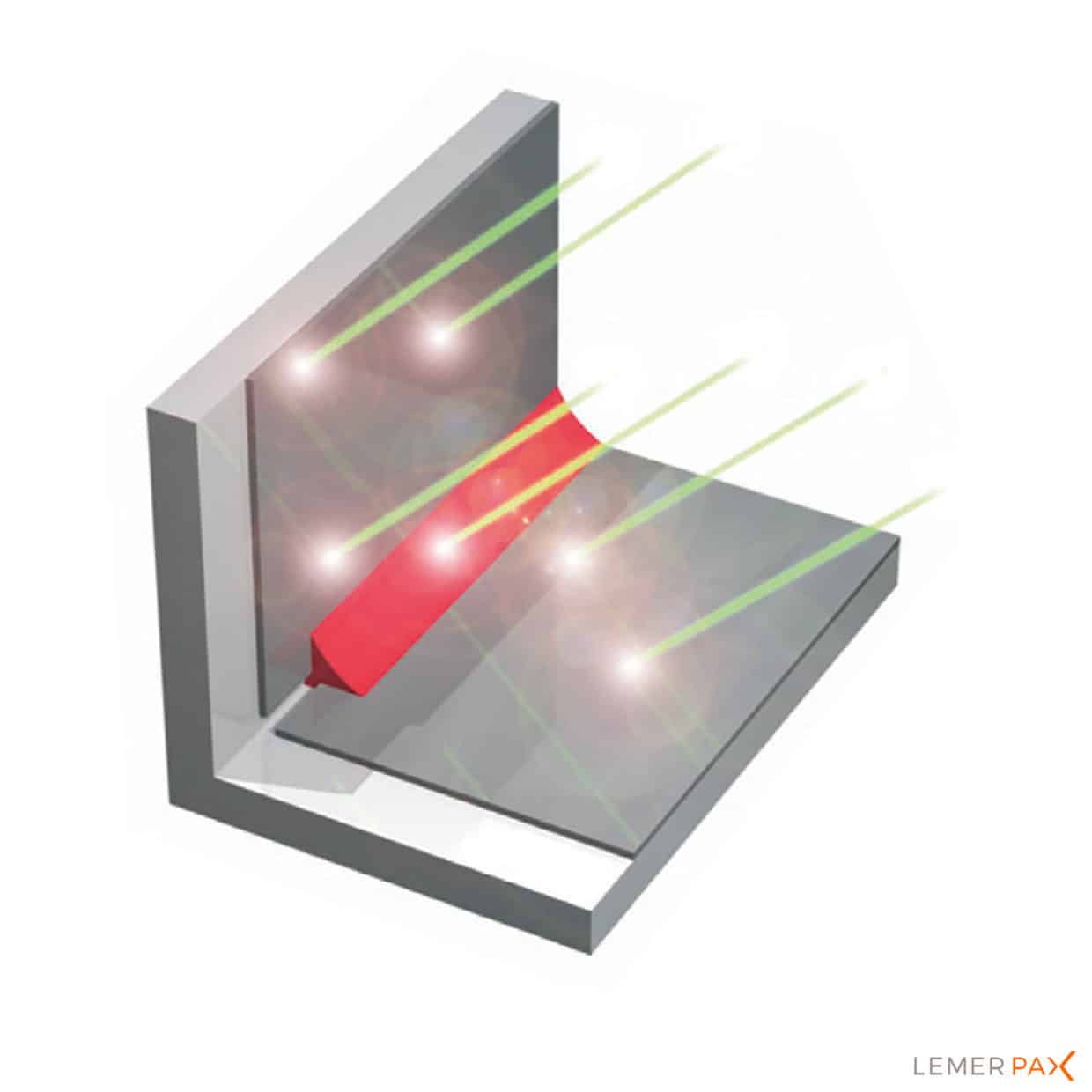

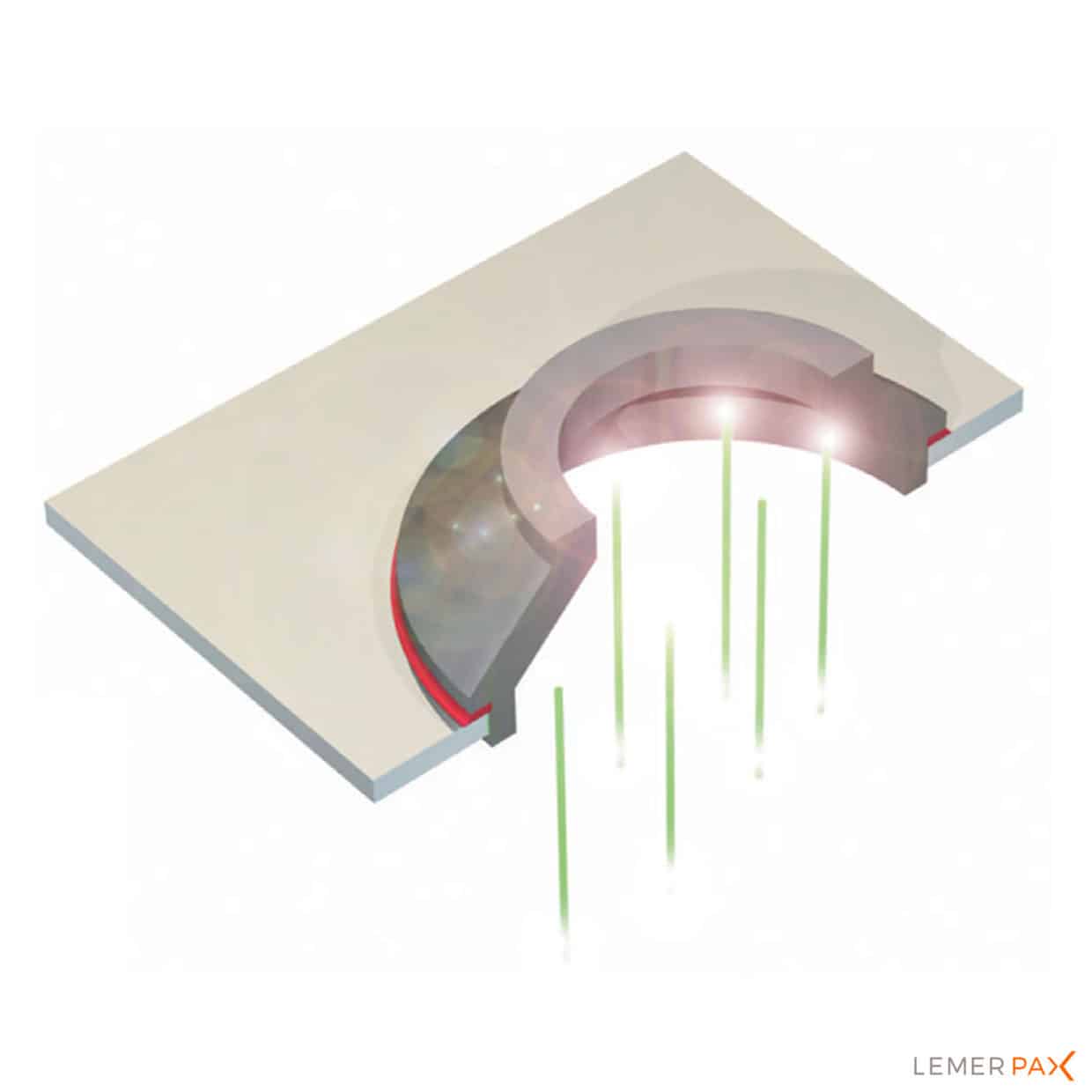

Seal X is the easiest way to achieve a continuous barrier against X-rays and gamma rays between two leaded or lead-free shielding sheets (example: Novashield®).
Seal X effectively replaces lead wool to fill gaps in shielding between two materials.
Elastic and strong, the sealant can bond together different materials such as lead glass, lead, concrete and Novashield®.
| Radiation protection (Lead equivalence for 10 mm) | ||||
|---|---|---|---|---|
| Source | Reference energy | Lead equivalence (mm) | Half-value layer (mm) | Attenuation % |
| X-ray | 150 keV | 1,81 | 0,74 | 99,99 |
| 241Am | 60 keV | 1,77 | 0,66 | 99,99 |
| 57Co | 122 keV | 1,79 | 0,86 | 99,97 |
| 99mTc | 141 keV | 1,79 | 1,27 | 99,58 |
| 192Ir | 317 keV | 2,01 | 8,37 | 56,32 |
| 131I | 365 keV | 2,01 | 10,51 | 48,31 |
| 18F | 511 keV | 2,12 | 18,33 | 31,48 |
| 137Cs | 662 keV | 2,2 | 24,41 | 24,72 |
| 60Co | 1332 keV | 2,37 | 45,25 | 14,2 |
CHARACTERISTICS
- Colour: charcoal grey
- Packaging: box of 12 cartridges of 290 ml
- Net weight of a cartridge: 850 g
- Density: 2.70 g/cm3
- Expiration date of the cartridge: 6 months from the date of shipping. Storage at room temperature (
- Application: standard, manual, electric or pneumatic singlepack silicone gun.
