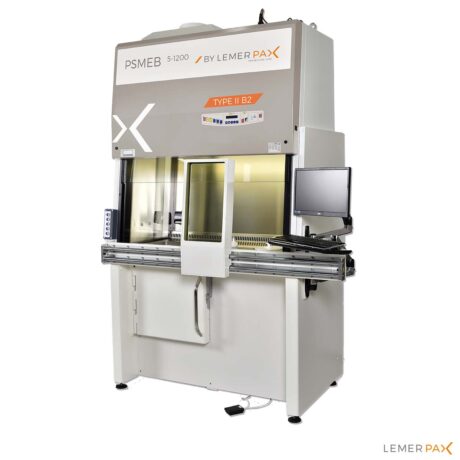

PSMEB Type II B2 cabinet

Discover the PSMEB type II B2, a latest-generation shielded microbiological safety cabinet designed to meet the needs of nuclear medicine and radiopharmacy laboratories.

Ideal for operations such as radioisotope cell labelling, elutions from ⁹⁹Mo/^99mTc generators, or radiolabelling of radioelements such as ^99mTc, ²⁰¹Tl, ¹¹¹In and ¹²³I, this device provides optimum protection against ionising radiation while guaranteeing a working environment that complies with the strictest standards.

This model of PSMEB is available in the following dimensions: 900, 1,200, 1,500 or 1,800 mm in length, with lead-equivalent shielding of 5, 10, 15, 25, 30 or 50 mm.

Unrivalled radiation protection

The PSMEB type II B2 features a sliding shield screen made of leaded glass, with thicknesses varying from 30 to 80 mm depending on the model. Combined with 5mm to 25mm lead shields, it offers uniform whole-body radiation protection, essential for handling in a controlled ISO 5 (class A) workspace.

Performance and advanced filtration

Equipped with a HEPA H14 filtration system, the PSMEB guarantees optimum air circulation with 100% air renewal, in compliance with the strict requirements of European standard EN-12469 – NSF/ANSI 49. Designed to comply with international standards, including the Machinery Directive 2006/42 and the Electromagnetic Compatibility Directive 2014/30/EU, the PSMEB maintains ISO 3 (Class A) air quality, measured in accordance with EN-14644. This laminar flow forms an effective air barrier with a minimum velocity of 0.4 m/s, guaranteeing both maximum protection for the user and the integrity of the substances handled, including pathogenic elements.

Ergonomics and innovative features of PSMEB Type II B2

The PSMEB type II B2 has been designed to offer an optimum user experience:

• 316L stainless steel work surface: Enables the installation of equipment such as a stirrer or a heated bain-marie.
• Inclined front glass: Made of electric laminated glass, it slides for safe access and easy handling.
• Adaptable working position: The large space under the worktop means you can work standing up or seated.

Accessories and options for greater safety

• Shielded generator housing: Up to 50 mm lead, with double lift for simultaneous use of two generators.
• Shielded activimeter compartment: Available in thicknesses of 15 or 25 mm and compatible with the Accurion-226®.
• Shielded waste compartment: Designed to limit exposure with customisable openings (total or partial magnetic).
• Germicidal UV tube: For complete disinfection with adjustable time delay.

Maximum exposure reduction

With the PSMEB type II B2, you benefit from a safe, ergonomic working environment that complies with the most demanding standards, for unrivalled radiation protection and productivity.
