PMIP mobile screen
Mobile interpatient screen
Reference :
00029822
Download the product sheet for more references

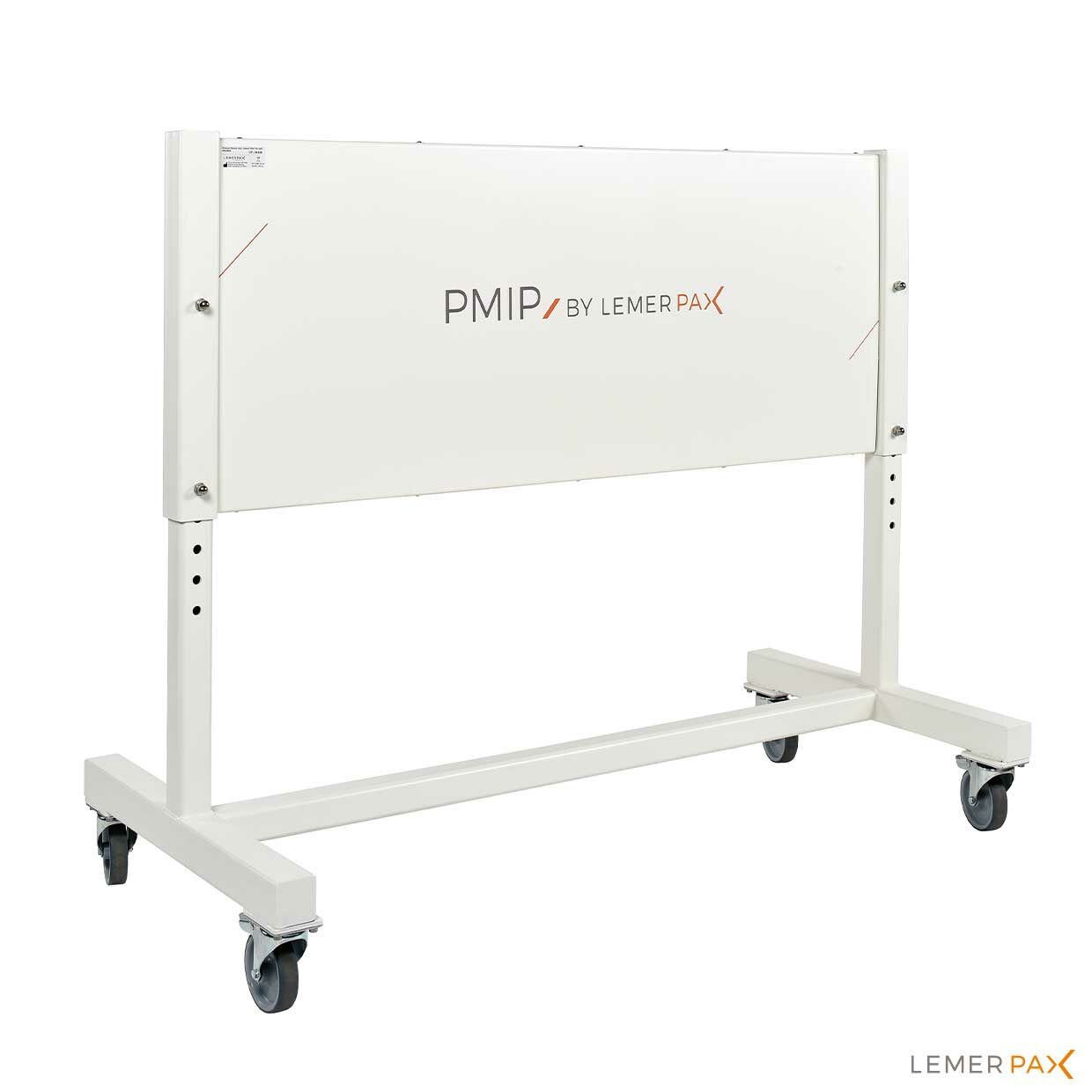

The PMIP mobile screen is a large shielded screen offering biological protection against gamma radiation of different energies
WHY CHOOSE PMIP mobile screen
- Mobile : partition to manage problems of small rooms and isolate a particular zone or space
- Modular : wide choice of dimensions (customised according to your requirements)
DESCRIPTION

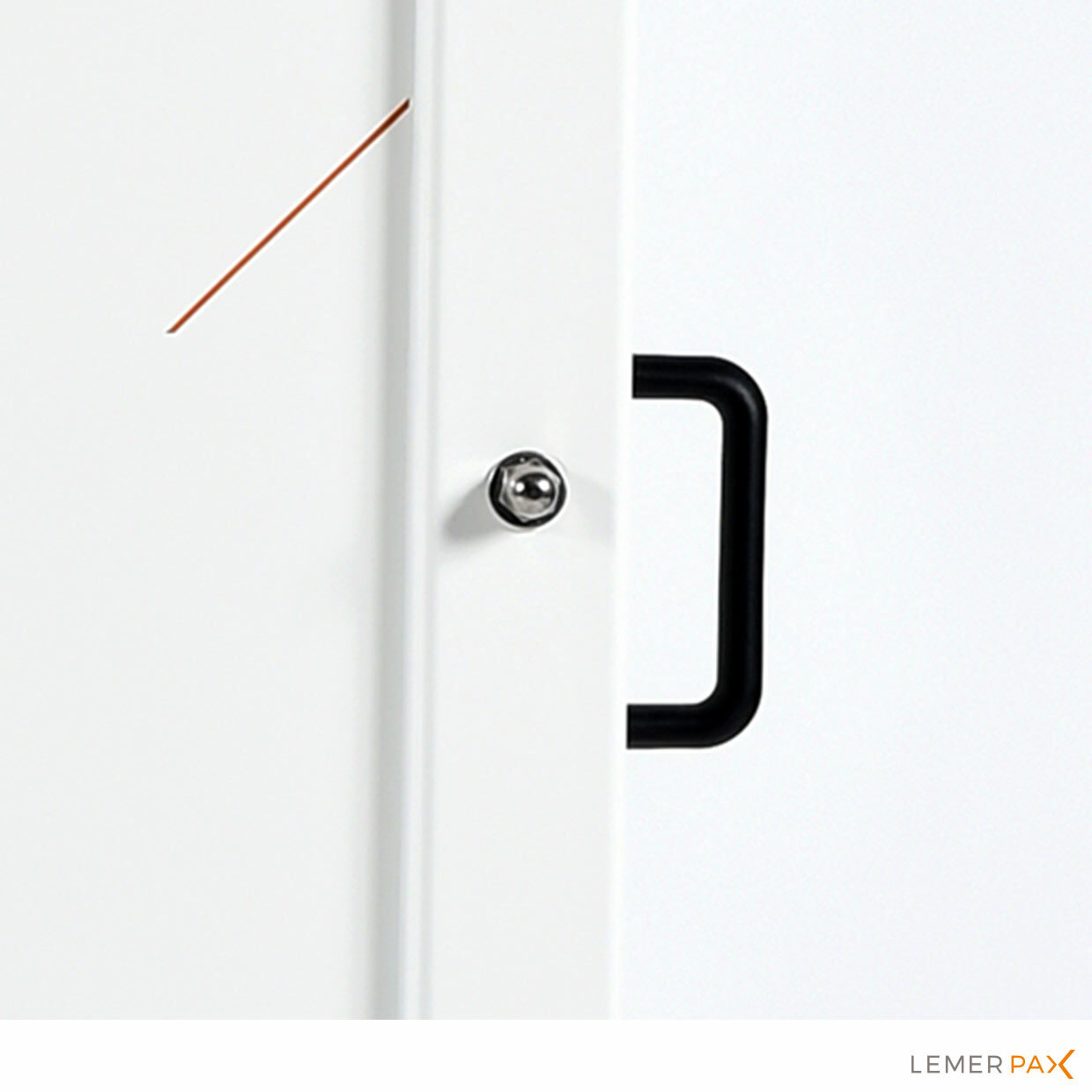

The PMIP mobile screen is a large shielded screen offering biological protection against gamma radiation of different energies, with five thickness options available: 10, 15, 20, 25 and 30 mm of lead. PMIP is equipped with four swivel castors for easy manoeuvrability and quick movement. The PMIP can be used to isolate an area, a specific space or a bedridden patient if required. The wide range of sizes allows this mobile screen to overcome all the issues related to small rooms or intermittently irradiated areas. Stability is ensured by four brakes on the four castors. Optional stainless steel lateral handles are available.
PMIP mobile screen: easy manoeuvrability and quick movement
The required height is set in the factory, using a screw system on each leg with 50 mm intervals. A variable height model with a double pedal hydraulic raising/lowering system is also available as an option to allow individual use with full autonomy. The painted steel coating makes daily cleaning easier. In order to meet specific needs and problems, Lemer Pax Design Engineers work in collaboration with you to produce models with customised dimensions and laminated lead glass viewing windows, if required.
CHARACTERISTICS
- 1 000:
Total dimensions: L 1 140 x H 1 154 to 1 354 x D 750 mm
Dim. of radiological protection screen: L 1 000 x H 600 x available thickness 10, 15, 20, 25, 30 mm - 2 000:
Total dimensions: L 1 640 x H 1 154 to 1 354 x D 750 mm
Dim. of radiological protection screen: L 1 500 x H 600 x available thickness 10, 15, 20, 25, 30 mm - 3 000:
Total dimensions: L 2 140 x H 1 154 to 1 354 x D 750 mm
Dim. of radiological protection screen: L 2 000 x H 600 x available thickness 10, 15, 20, 25, 30 mm - Materials: Painted steel RAL 9010
- Operation system: 4 pivoting castors with brakes Ø 125 mm
- Height adjustable when ordering:From 1,154 to 1,354 mm in 50 mm increments (factory setting)
