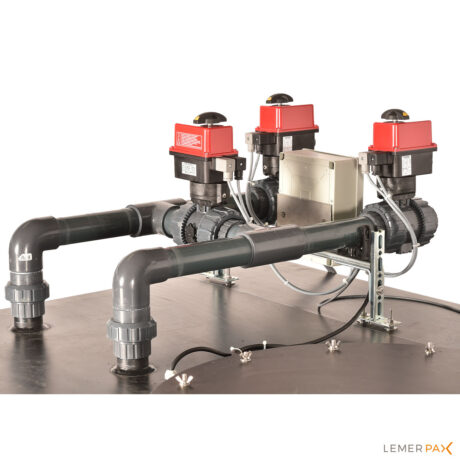

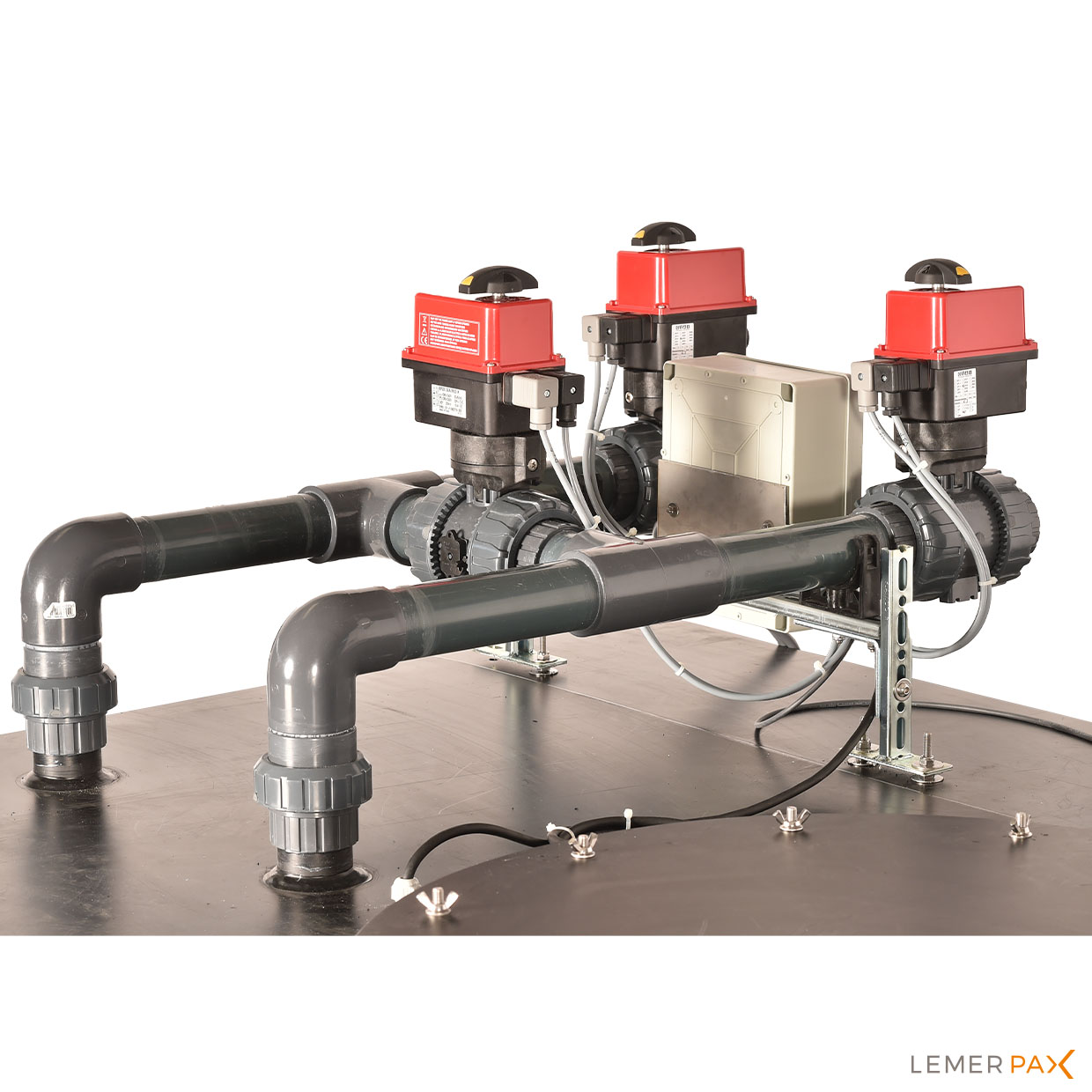

Motorised valves for decay tanks

In addition to the standard equipment required for your delay and decay tanks, Lemer Pax provides guidance and tailored solutions to all your requirements. We can add accessories and custom equipment to your existing or future facilities such as motorised valves.

Motorised valve enable you to semi-automate your waste management process (under the supervision of a Radiation Protection Advisor).

The filling, stirring, emptying and rinsing cycles, under the responsibility of a qualified person, are controlled by motorised valves to simplify operations while ensuring the safety of your staff. By eliminating the need for the operator to come into direct contact with the tanks to perform an action, our valves help to limit the operator’s exposure to radiation, thus ensuring enhanced protection.

What’s more, motorised valves automatically transfer contaminated effluents from a nearly-full tank to another tank, simplifying the process and guaranteeing optimum flow management.

Our radiation-resistant automated valves mix the effluent without human intervention, and control tank drainage and rinsing without the need for constant operator presence. They can also be used to empty a containment tray without the need for constant supervision.

Motorised valves – control application

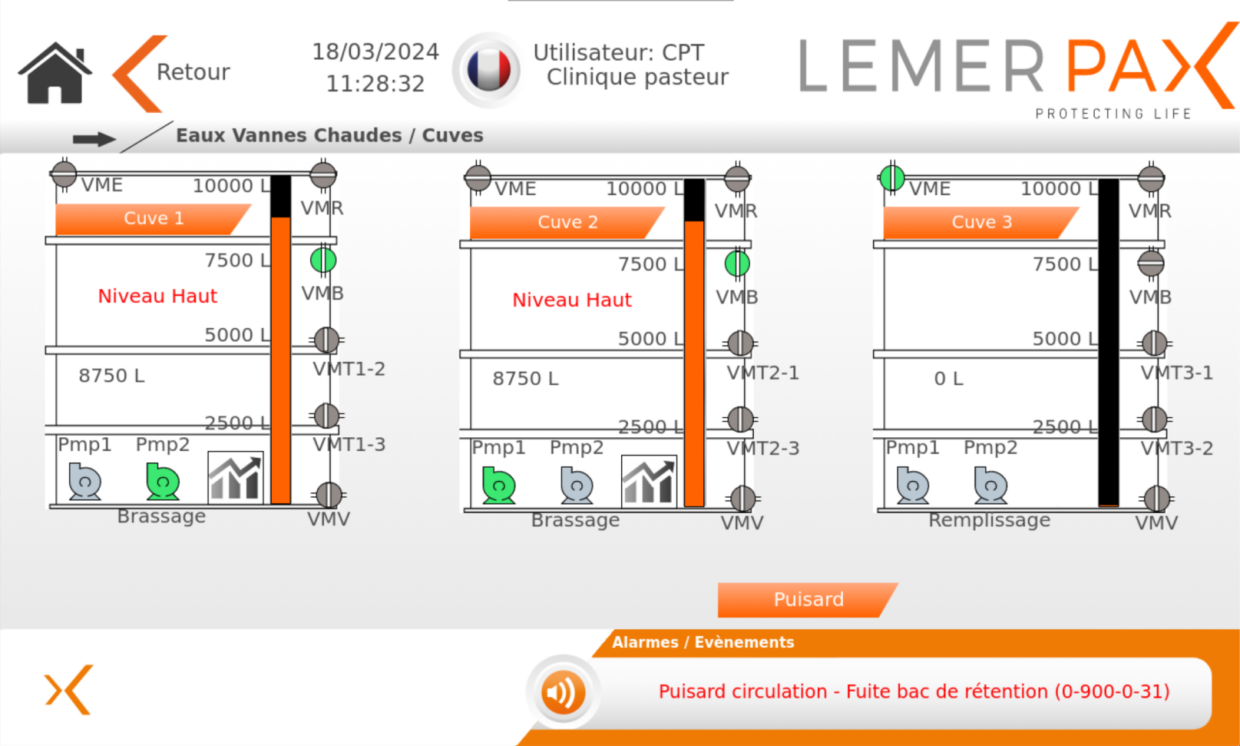

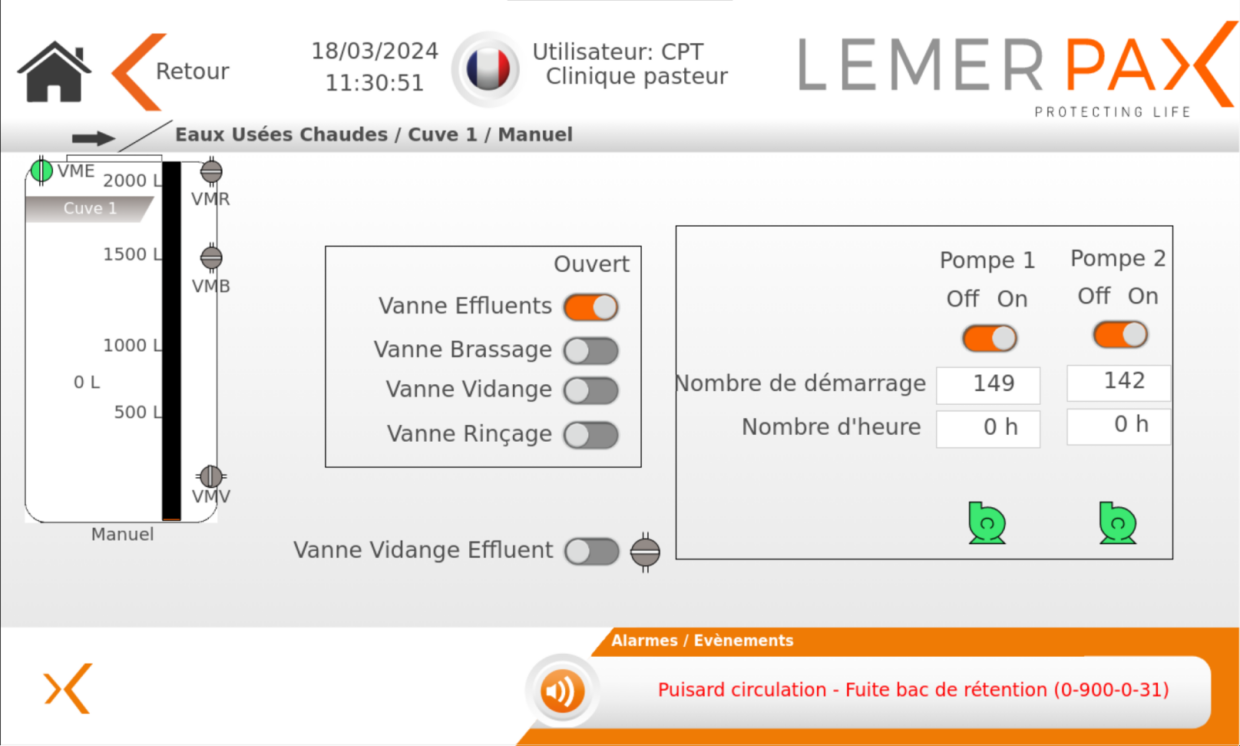

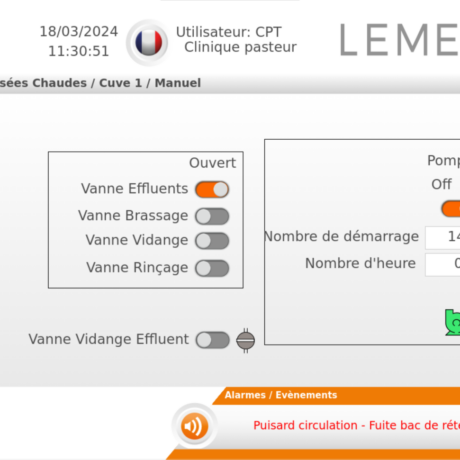

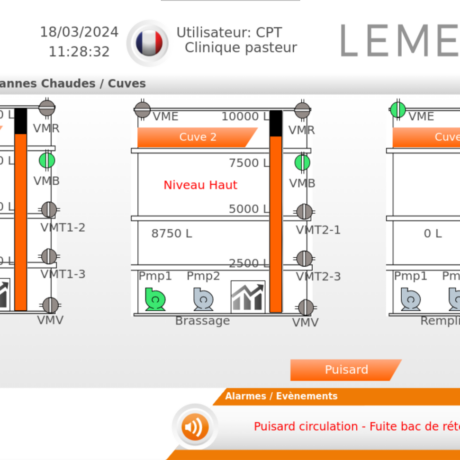

The control application displays tank levels in real time and controls the filling, mixing, drainage and rinsing cycles.
