DESCRIPTION

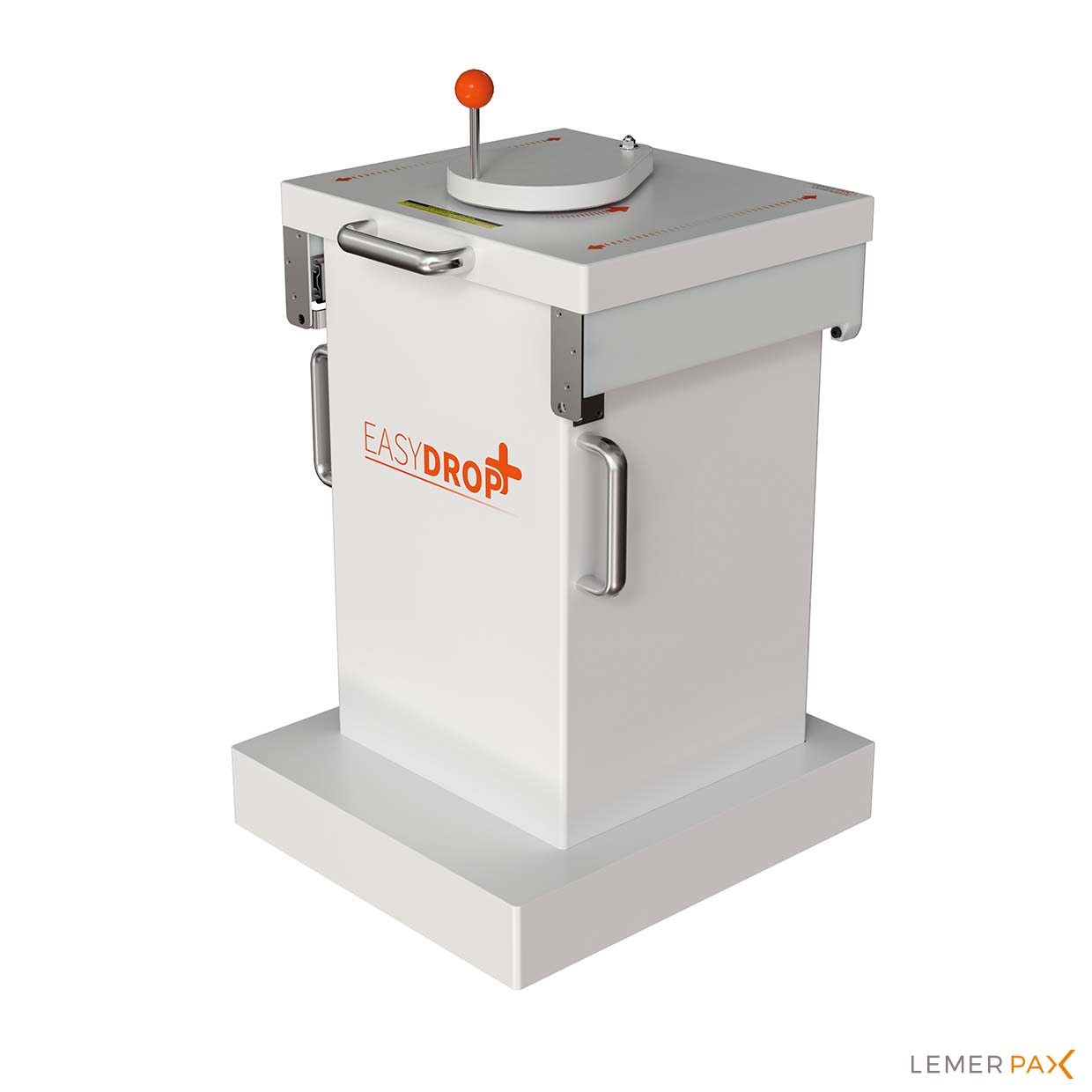

The new Easydrop+ shielded bin model combines the advantages of the Easydrop and Medi 64 bins.
Easydrop+ is specially designed to facilitate the storage, containment and decay of contaminated and radioactive healthcare waste.

The new reference for all-energy shielded waste bins for SPECT and PET activities in nuclear medicine

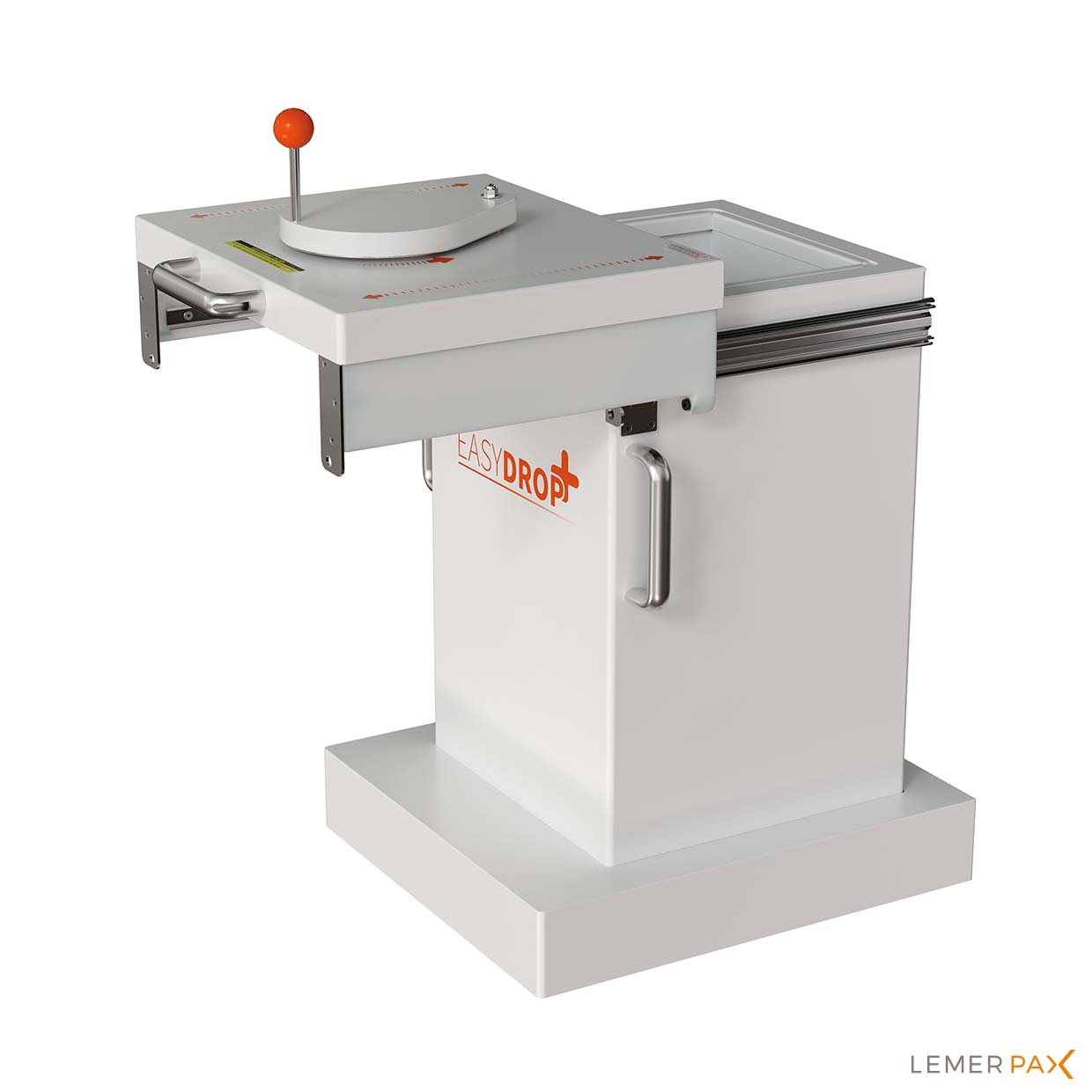

With its innovative full opening systems, on a slide, and partial opening with a swivel window, the user no longer handles heavy loads. Its two effortless opening modes provide a new level of comfort in daily activities, while maintaining appropriate radiation protection with the sources handled.

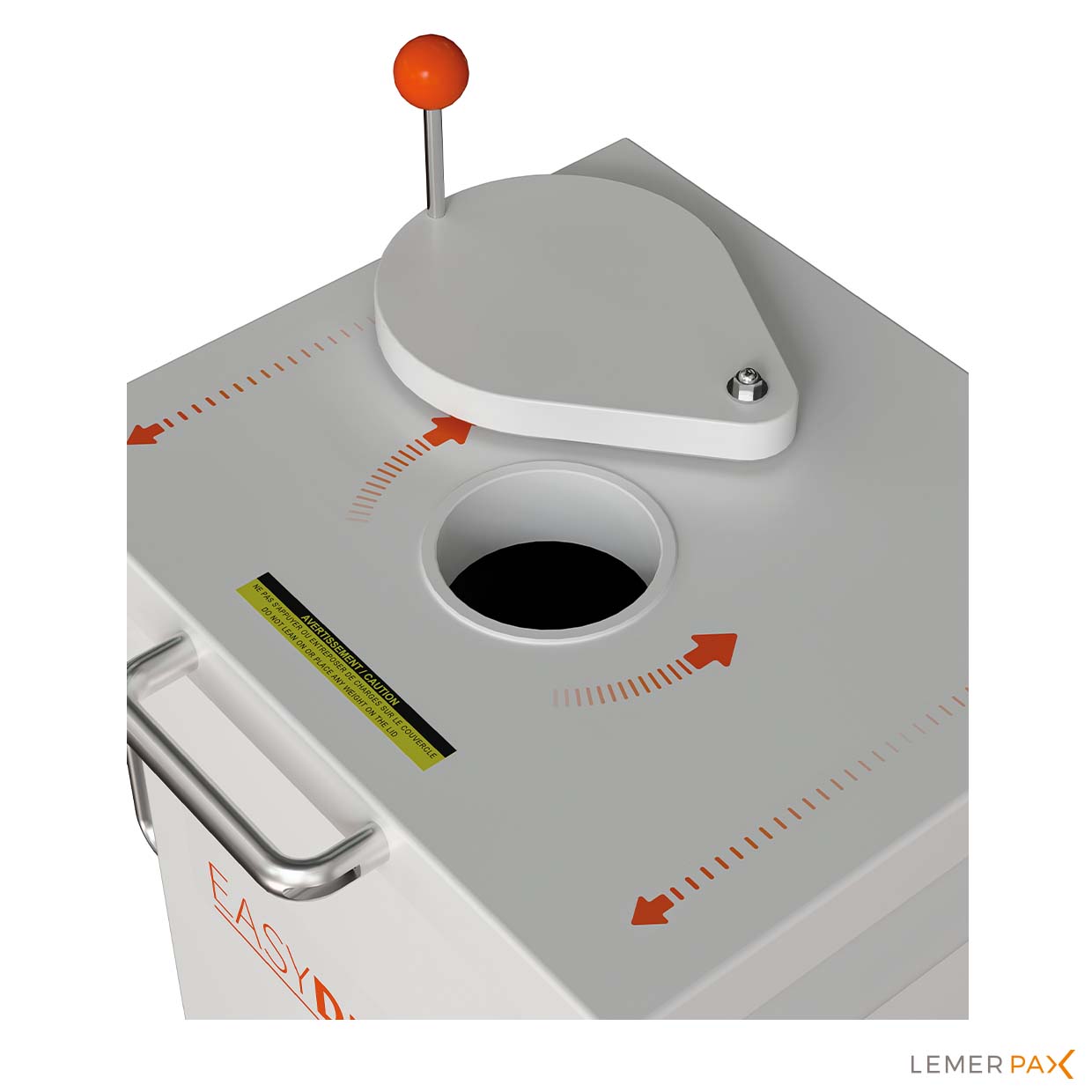

The presence of the swivel window on the sliding cover further improves and optimises the partial opening for smaller waste.

A protection designed for the users

Easydrop+ waste bins are available:

  • 5 different models
  • 3 specific capacities
  • 2 available shields: 10 mm and 20 mm lead
  • Lockable as an option and on request

It adapt to all applications and waste sizes, regardless of the radioisotope concerned: storage of used kits, disposable consumables, etc. And provide users with the appropriate protection for the time needed for radioactive decay before waste disposal.

Easydrop+ shielded bin : easy to move

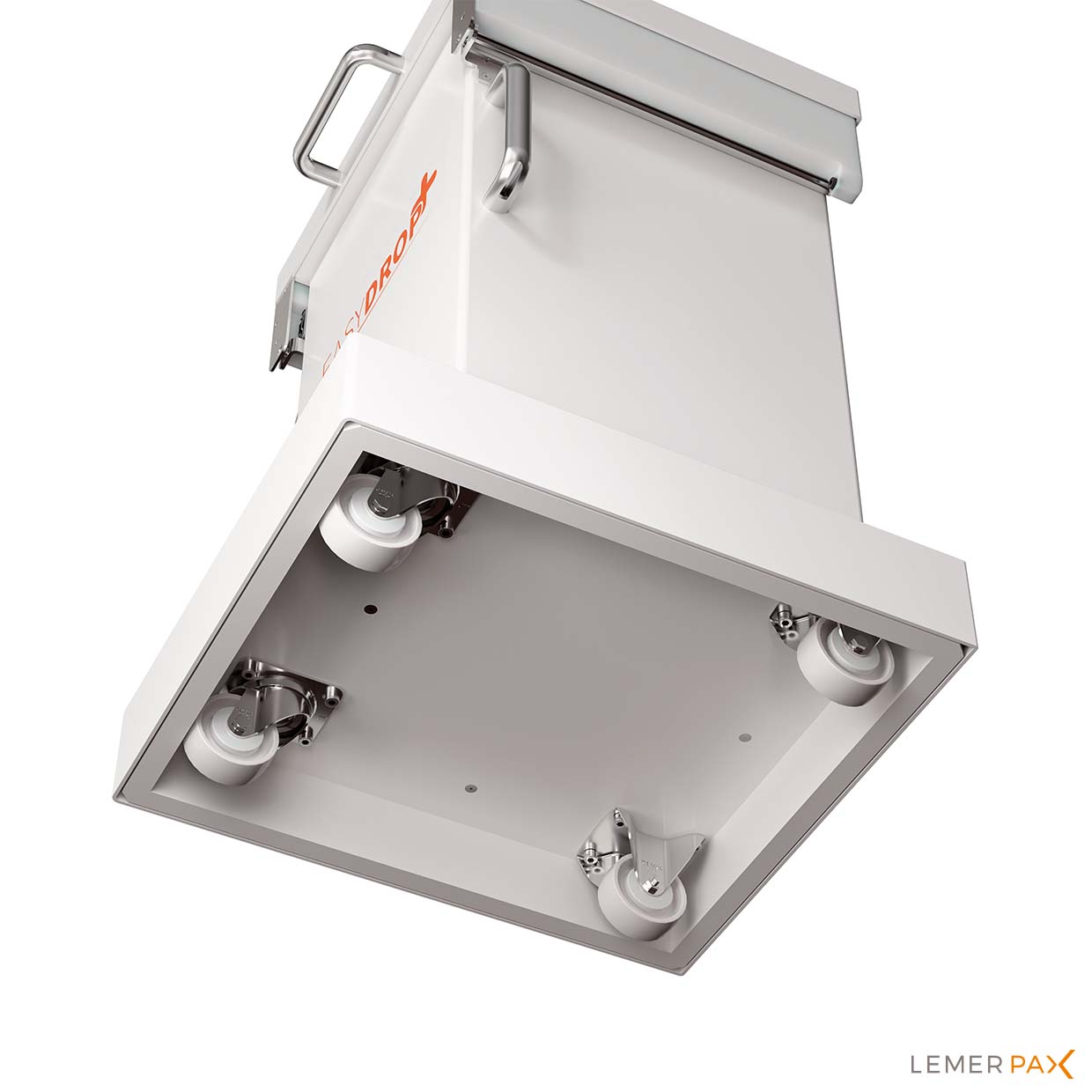

Thanks to its four castors: two fixed and two swivel, allow the shielded bin to be moved as required and positioned in the required room or space.

Two side handles made of natural POM allow to manage full and partial sliding opening systems. They can be operated manually or with the knee when required due to the size of the waste.

A PIMW bag holding frame is also provided to ensure that the bag remains secure during use.

CHARACTERISTICS

  • Easydrop+ LME 20 L - Overall external dimensions: L 462 x D 481 x H 905 mm
    - Radiation protection: 10 mm lead shielding over all sides
    - External dimensions with open slide: L 462 x D 659 x H 905 mm
    - Internal dimensions: L 200 x D 200 x H 500 mm
    - Weight: 106 kg
  • Easydrop+ LME 54 L - Overall external dimensions: L 562 x D 581 x H 905 mm
    - Radiation protection: 10 mm lead shielding over all sides
    - External dimensions with open slide: L 562 x d 917 x H 905mm
    - Internal dimensions: L 300 x D 300 x H 600 mm
    - Weight: 178 kg
  • Easydrop+ LME 80 L - Overall external dimensions: L 562 x D 581 x H 1 066 mm
    - Radiation protection: 10 mm lead shielding over all sides
    - External dimensions with open slide: L 562 x D 917 x H 1066 mm
    - Internal dimensions: L 320 x D 320 x H 790 mm
    - Weight: 209 kg
  • Easydrop+ HE 20 L - Overall external dimensions: L 462 x D 481 x H 893 mm
    - Radiation protection: 20 mm lead shielding over all sides
    - External dimensions with open slide: L 462 x D 659 x H 893 mm
    - Internal dimensions: L 200 x D 200 x H 500 mm
    - Weight: 188 kg
  • Easydrop+ HE 54 L - Overall external dimensions: L 520 x D 584 x H 893 mm
    - Radiation protection: 20 mm lead shielding over all sides
    - External dimensions with open slide: L 562 x D 917 x H 893mm
    Internal dimensions: L 300 x D 300 x H 600 mm
    - Weight: 305 kg
  • Equipments: 4 castors (2 fixed and 2 swivel)
    - 2 natural POM side handles
    - 1 bag holding frame
    - 1 intermediate opening system with swivel window
  • Intermediate opening diameter: Ø 115 mm
